AI chat widget

Drop a fully-featured AI chat experience into your website with a single HTML element.

You want users to chat with an AI agent on your site. The agent should know about your business, follow your security model, look like your brand, and ideally support voice input, predefined prompts, and chain-of-thought visualization.

Building this from scratch means writing a chat UI, wiring up streaming, handling history, integrating auth, and styling. The Squid AI chat widget gives you all of that as a single web component:

Client code
<script async src="https://widget.squid.cloud/widget.umd.js"></script>

<squid-chat-widget-with-fab-button
  squid-app-id="YOUR_APP_ID"
  squid-region="us-east-1.aws"
  squid-environment-id="prod"
  squid-ai-agent-id="YOUR_AGENT_ID"
></squid-chat-widget-with-fab-button>

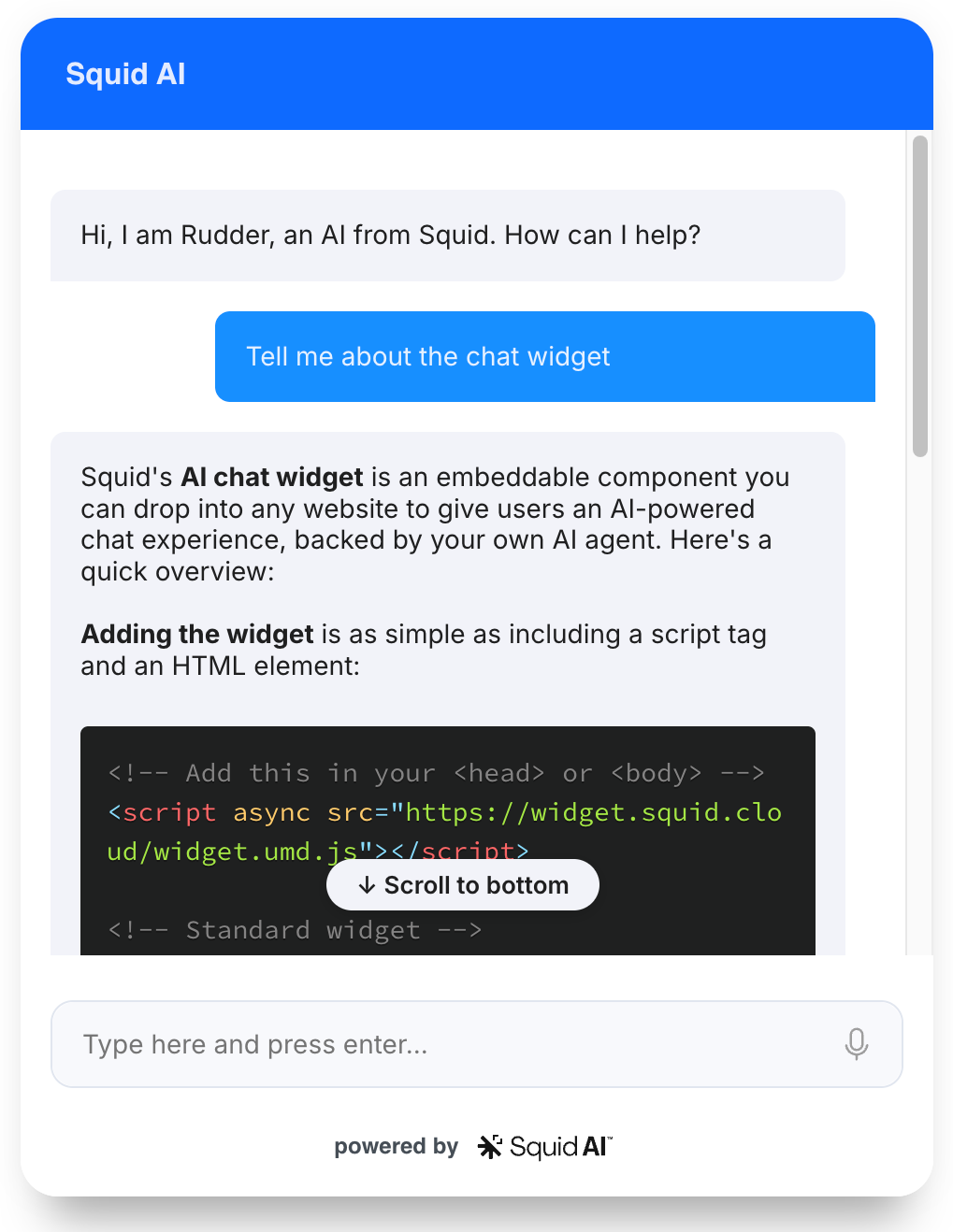

That's a full AI chat experience: input box, history, streaming responses, and a floating action button (FAB) to open and close it.

You can play with this widget right now via the FAB in the bottom-right corner of the page.

Overview

The Squid AI chat widget is a self-contained web component that talks to a Squid AI agent (or directly to a Squid database integration via Query with AI; see the example below). It is shipped as a single UMD bundle hosted at https://widget.squid.cloud/widget.umd.js and rendered into Shadow DOM, so it does not collide with your site's styles.

Two element variants

Element	Behavior
`<squid-chat-widget>`	Inline chat block. Renders wherever you place it in the document. You control sizing and layout.
`<squid-chat-widget-with-fab-button>`	Floating action button (FAB) in the bottom-right corner. Click to toggle the chat open or closed.

Both elements accept the same set of attributes.

Use Case	Recommendation
Add an AI assistant to a marketing site or web app	The chat widget
Build a fully custom chat UI	Use the AI agent SDK directly
Embed a chat that asks questions about a specific database	The chat widget with `squid-ai-query="true"` and `squid-ai-integration-id`
Run programmatic AI calls without a UI	`squid.ai().agent()` or `executeAiQuery`

Quick Start

Prerequisites

A Squid application created in the Squid Console
An AI agent created in the Agent Studio tab of your application
The agent's ID, your Squid app ID, and the region (all available in Backend Project under Show env vars in the Squid Console)

Step 1: Create an AI agent

In the Squid Console, open your application and click the Agent Studio tab
Click Create New Agent
Provide an Agent ID (this cannot be changed later) and a description
Click Create

After the agent is created, add Instructions (rules for how the agent responds) and Knowledge base items (background context). You can test the agent right away with the Test chat button.

note

Squid provides separate dev and prod environments. AI agents are not shared between them. Make sure the squid-environment-id attribute on the widget matches the environment your agent was created in. See environments.

Add the widget script tag to the <head> or <body> of your HTML:

Client code
<script async src="https://widget.squid.cloud/widget.umd.js"></script>

Client code
<squid-chat-widget-with-fab-button
  squid-app-id="YOUR_APP_ID"
  squid-region="us-east-1.aws"
  squid-environment-id="prod"
  squid-ai-agent-id="YOUR_AGENT_ID"
  header-title="Acme Assistant"
  intro-text="Hi! Ask me anything about Acme."
></squid-chat-widget-with-fab-button>

Replace YOUR_APP_ID, us-east-1.aws, and YOUR_AGENT_ID with your application's values.

Authentication and Configuration

Public vs private agents

An agent can be set to public or private in the Agent Studio (Agent Settings, scroll to Public agent).

Public agents can be accessed by anyone. The widget needs no auth credentials.
Private agents require an auth provider so Squid can verify the caller.

Securing a private agent

Connect an auth provider to Squid
Pass the integrationId of the auth provider and the user's auth token via the squid-auth-provider attribute:

Client code
<squid-chat-widget
  squid-app-id="YOUR_APP_ID"
  squid-region="us-east-1.aws"
  squid-environment-id="prod"
  squid-ai-agent-id="YOUR_AGENT_ID"
  squid-auth-provider='{"integrationId": "AUTH_INTEGRATION_ID", "token": "AUTH_TOKEN"}'
></squid-chat-widget>

Add a @secureAiAgent rule on the backend to control who can chat:

TypeScript
Python

Backend code
@secureAiAgent('chat')
allowAccessToAgent(): boolean {
  return this.isAuthenticated();
}

Backend code
@secure_ai_agent('chat')
def allow_access_to_agent(self) -> bool:
    return self.is_authenticated()

note

A public agent bypasses @secureAiAgent rules entirely. Auth credentials are still made available to AI functions, so you can still gate specific function calls inside a public agent. See AI functions.

For conditional checks, agent-scoped rules, and Agent API Keys, see Securing AI agents and Agent API Keys.

For more details on the authentication flow, see authentication.

Enabling custom HTML elements in your framework

Some frontend frameworks need extra setup to allow custom HTML elements.

React (src/declarations.d.ts):

Client code
declare namespace JSX {
  interface IntrinsicElements {
    'squid-chat-widget': any;
    'squid-chat-widget-with-fab-button': any;
  }
}

Angular (src/app/app.module.ts):

Client code
import { CUSTOM_ELEMENTS_SCHEMA } from '@angular/core';

@NgModule({
  schemas: [CUSTOM_ELEMENTS_SCHEMA],
})
export class AppModule {}

For other frameworks, see your framework's documentation on enabling custom elements.

Core Concepts

Connection attributes

These attributes tell the widget how to reach Squid and which agent or integration to talk to.

Attribute	Type	Required	Description
`squid-app-id`	string	Yes (unless using `squid-ai-custom-api-url`)	Your Squid application ID
`squid-region`	string	Yes (unless using `squid-ai-custom-api-url`)	AWS region for your application (e.g. `us-east-1.aws`)
`squid-environment-id`	string	No (defaults to `prod`)	`dev` or `prod`. Must match the environment the agent lives in.
`squid-developer-id`	string	No	Developer ID. Required only when running the backend locally.
`squid-api-key`	string	No	Squid API key. Use only on trusted surfaces, never in user-facing pages.
`squid-ai-agent-id`	string	Yes (unless `squid-ai-query="true"` or using `squid-ai-custom-api-url`)	The agent ID to chat with
`squid-ai-profile-id`	string	No (deprecated)	Old name for `squid-ai-agent-id`. Logs a deprecation warning. Use `squid-ai-agent-id` instead.
`squid-ai-integration-id`	string	Yes when `squid-ai-query="true"`	The database integration ID to query when running in Query with AI mode
`squid-ai-query`	boolean	No	When `true`, the widget runs against a database integration via Query with AI instead of an agent
`squid-auth-provider`	JSON	No	`{ "integrationId": "...", "token": "..." }`. Required for private agents.
`squid-ai-custom-api-url`	string	No	A custom HTTP endpoint that handles chat requests instead of going through Squid
`squid-ai-custom-api-headers`	JSON	No	Extra headers sent with custom API URL requests

Chat behavior attributes

Attribute	Type	Description
`squid-ai-functions`	string	Comma-separated list of AI function names to enable
`squid-ai-functions-json`	JSON	Array of function objects with optional `name`, `context`, and `predefinedParameters`
`squid-ai-temperature`	number	Temperature in `[0, 1]`. Lower is more deterministic.
`squid-ai-max-tokens`	number	Maximum number of tokens for the LLM response
`squid-ai-override-model`	string	Override the model the agent uses (e.g. `gpt-4o`)
`squid-ai-context-metadata-filter`	JSON	Metadata filter applied to knowledge base lookups. See filtering context.
`squid-ai-instructions`	string	Instructions appended to the agent's system prompt for this widget instance
`squid-ai-connected-agents`	JSON	Array of `{ agentId, description }` for connected agents the agent can delegate to
`squid-ai-agent-chat-options`	JSON	Advanced chat options object. See Advanced chat options below.
`squid-ai-enable-raw-results`	boolean	When using `squid-ai-query="true"`, request raw query result files
`squid-ai-enable-code-interpreter`	boolean	When using `squid-ai-query="true"`, enable the Python code interpreter for charts and analysis
`disable-history`	boolean	Disable conversation memory across messages
`chain-of-thought`	boolean	Show the agent's reasoning steps (tool calls, queries, function executions)
`show-status-tags`	boolean	Show tag labels on chain-of-thought status updates
`observe-status`	boolean	Observe live status updates from the backend
`include-reference`	boolean	Show source references (citations) in agent responses
`enable-transcription`	boolean	Show a microphone button so users can speak their prompts
`predefined-prompts`	string	Suggested prompts shown to the user. Comma- or newline-separated, or a JSON-stringified array.
`enable-debug-logs`	boolean	Print debug logs to the browser console

Display and customization attributes

Attribute	Type	Description
`header-title`	string	Title text in the chat header. Defaults to `SquidAI Chat`.
`intro-text`	string	First message shown to the user when the chat opens
`avatar-image-url`	string	URL of the avatar image shown next to AI messages
`chat-icon-url`	string	Custom icon for the floating action button
`widget-width`	string	CSS width value (e.g. `400px`)
`widget-height`	string	CSS height value (e.g. `600px`)
`theme`	string	`light` or `dark`. Defaults to `light`.
`rtl-mode`	boolean	Enable right-to-left layout for languages like Arabic and Hebrew
`use-maximize-button`	boolean	Show a maximize/minimize button. Only meaningful in FAB mode.
`open-on-load`	boolean	Auto-open the FAB widget when the page loads
`powered-by-text`	string	Override the "Powered by Squid" footer text
`menu-items-json`	JSON	Array of `{ title, slotName }` objects defining custom menu items. See Custom menu items.
`base-stylesheet-url`	string	Override the base CSS file. Defaults to `https://widget.squid.cloud/style.css`.
`stylesheet-url`	string	Additional CSS file loaded on top of the base stylesheet
`error-formatter`	string or function	`'generic-error'`, `'original-error'` (default), or a JS function `(error) => string`

Localization attributes

The widget exposes a set of attributes for replacing built-in UI strings:

Attribute	Default
`text-placeholder`	"Type here and press enter..."
`text-thinking`	"Thinking..."
`text-thought-for`	"Thought for"
`text-suggested-prompts`	"Suggested Prompts"
`text-suggested-prompts-description`	"Explore what this agent can do with a few examples."
`text-milliseconds`	"milliseconds"
`text-seconds`	"seconds"
`text-minutes`	"minutes"

Advanced chat options

squid-ai-agent-chat-options accepts a JSON object that maps to the agent chat options interface. Common fields:

Field	Description
`agentContext`	An object passed to every AI function call. See passing context to AI functions.
`instructions`	A string appended to the agent's system instructions for this widget instance
`contextMetadataFilterForKnowledgeBase`	An object that restricts which knowledge base entries are used. See filtering context.
`functions`	An array of function descriptors with optional `predefinedParameters` and per-function `context`
`memoryOptions`	Conversation memory configuration: `memoryId`, `memoryMode`
`temperature`	Sampling temperature
`model`	Override the model used by this widget instance

Example:

Client code
<squid-chat-widget
  squid-app-id="YOUR_APP_ID"
  squid-region="us-east-1.aws"
  squid-ai-agent-id="YOUR_AGENT_ID"
  squid-ai-agent-chat-options='{
    "agentContext": { "tenantId": "acme" },
    "instructions": "Always reply in Spanish.",
    "contextMetadataFilterForKnowledgeBase": {
      "product-docs": { "version": "v2" }
    },
    "memoryOptions": { "memoryMode": "read-write", "memoryId": "session-123" }
  }'
></squid-chat-widget>

menu-items-json defines extra entries in the chat header menu. Each entry has a title and a slotName. Provide content for each slot using the standard slot= attribute on a child element.

Client code
<squid-chat-widget
  squid-app-id="YOUR_APP_ID"
  squid-region="us-east-1.aws"
  squid-ai-agent-id="YOUR_AGENT_ID"
  menu-items-json='[
    { "title": "Documentation", "slotName": "docs" },
    { "title": "Contact us", "slotName": "contact" }
  ]'
>
  <div slot="docs">
    <h3>Documentation</h3>
    <p>Read our docs at <a href="https://docs.example.com">docs.example.com</a>.</p>
  </div>
  <div slot="contact">
    <h3>Contact us</h3>
    <p>Email <a href="mailto:hello@example.com">hello@example.com</a></p>
  </div>
</squid-chat-widget>

CSS variables

The widget renders inside Shadow DOM. Override its appearance by setting CSS custom properties on the host element. Each variable falls back to the widget's default theme.

Variable	Controls
`--squid-widget-header-background-color`	Header background
`--squid-widget-header-title-color`	Header title text color
`--squid-widget-header-menu-button-background-color`	Menu button background
`--squid-widget-header-menu-button-icon-url`	Menu button icon image URL
`--squid-widget-header-menu-item-color`	Menu item text color
`--squid-widget-header-menu-item-hover-background-color`	Menu item hover background
`--squid-widget-menu-item-back-icon-url`	Back button icon for sub-menus
`--squid-widget-body-background-color`	Chat body background
`--squid-widget-ai-message-background-color`	AI message bubble background
`--squid-widget-ai-message-text-color`	AI message text color
`--squid-widget-user-message-background-color`	User message bubble background
`--squid-widget-user-message-color`	User message text color
`--squid-widget-textarea-background-color`	Input textarea background
`--squid-widget-textarea-border-color`	Input textarea border
`--squid-widget-textarea-text-color`	Input textarea text color
`--squid-widget-textarea-submit-image-url`	Submit button icon image URL
`--squid-widget-inline-code-background-color`	Inline code block background
`--squid-widget-inline-code-border-color`	Inline code block border
`--squid-widget-link-color`	Hyperlink color
`--squid-widget-powered-by-color`	"Powered by" footer text color
`--squid-widget-fab-background-color`	FAB button background
`--squid-widget-fab-image-url`	FAB button icon (closed state)
`--squid-widget-fab-close-image-url`	FAB button icon (open state)

Example using inline style:

Client code
<squid-chat-widget
  squid-app-id="YOUR_APP_ID"
  squid-region="us-east-1.aws"
  squid-ai-agent-id="YOUR_AGENT_ID"
  style="
    --squid-widget-header-background-color: #1a73e8;
    --squid-widget-ai-message-background-color: #e8f0fe;
    --squid-widget-user-message-background-color: #1a73e8;
    --squid-widget-user-message-color: #ffffff;
  "
></squid-chat-widget>

You can also use the class attribute to apply your own external stylesheet rules.

Listening for events

The widget dispatches a change CustomEvent whenever the chat history or status updates change. Two payload shapes are supported:

Client code
const widget = document.querySelector('squid-chat-widget')!;

widget.addEventListener('change', (event: CustomEvent) => {
  if (event.detail.type === 'history') {
    // event.detail.history is an array of ChatMessage objects
    console.log('History updated:', event.detail.history);
  } else if (event.detail.type === 'status') {
    // event.detail.status is an array of AiStatusMessage objects
    console.log('Status updated:', event.detail.status);
  }
});

In React, pass an onChange callback prop instead:

Client code
<SquidChatWidgetWithFabButtonEntryPoint
  squidAppId="YOUR_APP_ID"
  squidRegion="us-east-1.aws"
  squidAiAgentId="YOUR_AGENT_ID"
  onChange={(event) => {
    console.log(event.detail);
  }}
/>

Code Examples

Override parameters on an AI function

When you want certain parameters fixed and not chosen by the AI, use predefinedParameters via squid-ai-functions-json. See overriding parameter values for the matching backend pattern.

Client code
<squid-chat-widget
  squid-app-id="YOUR_APP_ID"
  squid-region="us-east-1.aws"
  squid-ai-agent-id="YOUR_AGENT_ID"
  squid-ai-functions-json='[
    { "name": "saveSection", "predefinedParameters": { "sectionId": "introduction" } }
  ]'
></squid-chat-widget>

Pass agent context to backend functions

Use the agentContext field of squid-ai-agent-chat-options to attach values that every AI function call can read on the backend. The companion backend pattern is documented in passing context to AI functions.

Client code
<squid-chat-widget
  squid-app-id="YOUR_APP_ID"
  squid-region="us-east-1.aws"
  squid-ai-agent-id="YOUR_AGENT_ID"
  squid-ai-agent-chat-options='{
    "agentContext": { "documentId": "doc-42" },
    "functions": [
      { "name": "saveSection", "context": { "codenameList": ["LITANIA", "LEOPARD"] } }
    ]
  }'
></squid-chat-widget>

Chat against a database with Query with AI

Set squid-ai-query="true" and provide a database integration ID instead of an agent ID. See Query with AI for the underlying feature.

Client code
<squid-chat-widget
  squid-app-id="YOUR_APP_ID"
  squid-region="us-east-1.aws"
  squid-ai-query="true"
  squid-ai-integration-id="postgres"
  squid-ai-enable-code-interpreter="true"
  predefined-prompts='[
    "How many users signed up last week?",
    "Show me a chart of orders per region.",
    "Which products had no sales this month?"
  ]'
></squid-chat-widget>

Custom backend webhook

Route the chat through your own backend with squid-ai-custom-api-url. The widget posts the prompt to that URL; you handle the response.

Client code
<squid-chat-widget
  squid-ai-custom-api-url="https://YOUR_APP-prod.us-east-1.aws.squid.cloud/webhooks/chat?projectId=YOUR_PROJECT_ID"
></squid-chat-widget>

TypeScript
Python

Backend code
import { webhook, SquidService, WebhookRequest } from '@squidcloud/backend';

interface ChatRequest {
  prompt: string;
}

interface ChatResponse {
  response: string;
}

export class ChatService extends SquidService {
  @webhook('chat')
  async chat(request: WebhookRequest<ChatRequest>): Promise<ChatResponse> {
    const userPrompt = request.body.prompt;
    const projectId = request.queryParams['projectId'];

    // Custom logic to handle the user prompt and project ID.
    return { response: `Echo: ${userPrompt}` };
  }
}

Backend code
from squidcloud_backend import SquidService, WebhookRequest, WebhookResponse, webhook


class ChatService(SquidService):
    @webhook('chat')
    async def chat(self, request: WebhookRequest) -> WebhookResponse:
        user_prompt = request['body']['prompt']
        project_id = request.get('queryParams', {}).get('projectId')

        # Custom logic to handle the user prompt and project ID.
        return self.create_webhook_response(body={'response': f'Echo: {user_prompt}'})

Programmatic creation in JavaScript

Client code
const widget = document.createElement('squid-chat-widget');
widget.setAttribute('squid-app-id', 'YOUR_APP_ID');
widget.setAttribute('squid-region', 'us-east-1.aws');
widget.setAttribute('squid-ai-agent-id', 'YOUR_AGENT_ID');
widget.setAttribute('header-title', 'Acme Assistant');
widget.setAttribute('squid-ai-agent-chat-options', JSON.stringify({ memoryOptions: { memoryMode: 'read-write', memoryId: 'session-1' } }));

// Function-typed props are set as DOM properties, not attributes.
(widget as any)['error-formatter'] = (error: unknown) => `Something went wrong: ${error}`;

document.body.appendChild(widget);

Error Handling

Common errors

Error	Cause	Solution
`squid-app-id must be specified`	Missing `squid-app-id` attribute	Add `squid-app-id` (or use `squid-ai-custom-api-url`)
`squid-region must be specified`	Missing `squid-region` attribute	Add `squid-region`
`squid-ai-agent-id must be specified or squid-ai-query must be true`	No agent ID and not running in query mode	Add `squid-ai-agent-id`, or set `squid-ai-query="true"` plus `squid-ai-integration-id`
`squid-ai-integration-id must be specified when using squid-ai-query`	`squid-ai-query="true"` without an integration ID	Add `squid-ai-integration-id`
`squid-ai-profile-id is deprecated, use squid-ai-agent-id instead`	Using the legacy attribute name	Rename to `squid-ai-agent-id`
`UNAUTHORIZED` from the backend	Private agent, no auth provider, or `@secureAiAgent` denied	Set `squid-auth-provider` and verify the `@secureAiAgent` rule
Custom HTML element not recognized	Framework needs custom element registration	See Enabling custom HTML elements in your framework

Use enable-debug-logs="true" to print extra information to the browser console while diagnosing issues.

Customize error display

Use error-formatter to control how errors are shown to the user. The built-in values are 'generic-error' (a single shared message) and 'original-error' (the actual error message, default). You can also pass a function:

Client code
const widget = document.querySelector('squid-chat-widget')!;
(widget as any)['error-formatter'] = (error: unknown) => {
  if (error instanceof Error) return error.message;
  return 'Something went wrong. Please try again.';
};

Best Practices

Keep squid-app-id and squid-region in HTML, never API keys. The chat widget runs in the browser. Anything you put in squid-api-key is visible to anyone viewing the page. For private agents, use squid-auth-provider and @secureAiAgent instead.
Use squid-ai-agent-id, not squid-ai-profile-id. The latter is deprecated and logs a warning.
Match squid-environment-id to the agent's environment. Agents created in dev are not visible in prod and vice versa.
Apply security rules on the backend even when the agent is public. Public agents skip @secureAiAgent, but @secureAiQuery and AI function auth checks still run.
Set chain-of-thought="true" during development to see exactly what the agent is doing. Turn it off (or leave it on with show-status-tags="false") for end users.
Cache CSS overrides in your own stylesheet rather than inlining them with style=, so multiple widget instances stay in sync.
Listen to change events if you want to persist conversation history outside the widget or feed it into product analytics.

AI chat widget

Drop a fully-featured AI chat experience into your website with a single HTML element.

Why Use the AI Chat Widget

Overview

Two element variants

When to use the chat widget

Quick Start

Prerequisites

Step 1: Create an AI agent

Step 2: Load the widget script

Step 3: Render the widget

Authentication and Configuration

Public vs private agents

Securing a private agent

Enabling custom HTML elements in your framework

Core Concepts

Connection attributes

Chat behavior attributes

Display and customization attributes

Localization attributes

Advanced chat options

Custom menu items

CSS variables

Listening for events

Code Examples

Override parameters on an AI function

Pass agent context to backend functions

Chat against a database with Query with AI

Custom backend webhook

Programmatic creation in JavaScript

Error Handling

Common errors

Customize error display

Best Practices

See Also

Drop a fully-featured AI chat experience into your website with a single HTML element.​

Why Use the AI Chat Widget​

Overview​

Two element variants​

When to use the chat widget​

Quick Start​

Prerequisites​

Step 1: Create an AI agent​

Step 2: Load the widget script​

Step 3: Render the widget​

Authentication and Configuration​

Public vs private agents​

Securing a private agent​

Enabling custom HTML elements in your framework​

Core Concepts​

Connection attributes​

Chat behavior attributes​

Display and customization attributes​

Localization attributes​

Advanced chat options​

Custom menu items​

CSS variables​

Listening for events​

Code Examples​

Override parameters on an AI function​

Pass agent context to backend functions​

Chat against a database with Query with AI​

Custom backend webhook​

Programmatic creation in JavaScript​

Error Handling​

Common errors​

Customize error display​

Best Practices​

See Also​

Drop a fully-featured AI chat experience into your website with a single HTML element.

Why Use the AI Chat Widget

Overview

Two element variants

When to use the chat widget

Quick Start

Prerequisites

Step 1: Create an AI agent

Step 2: Load the widget script

Step 3: Render the widget

Authentication and Configuration

Public vs private agents

Securing a private agent

Enabling custom HTML elements in your framework

Core Concepts

Connection attributes

Chat behavior attributes

Display and customization attributes

Localization attributes

Advanced chat options

Custom menu items

CSS variables

Listening for events

Code Examples

Override parameters on an AI function

Pass agent context to backend functions

Chat against a database with Query with AI

Custom backend webhook

Programmatic creation in JavaScript

Error Handling

Common errors

Customize error display

Best Practices

See Also
